Thanks for choosing HITECH ELEVATOR as your business partner

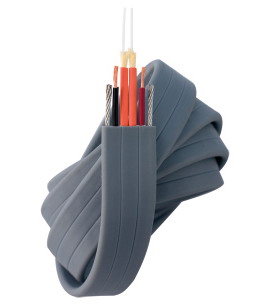

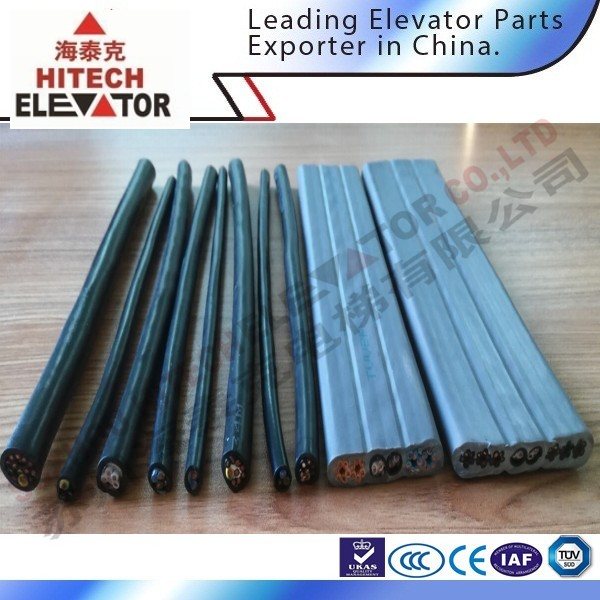

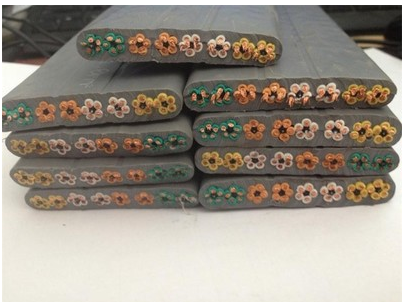

We can supply all type of eleator travelling cable, elevator flat cable, lift shaft cable.
Product describtion
1,Product Name: Elevator Parts ,Elevator cable,lift cable
2,Product standard: GB5023.6-1997(idt IEC227-6:1985);
3,Cable specification: 227 IEC 71f (TVVB)300/500V 0.75~1.0mm2 (3~24)core;
227 IEC 71f (TVVB)450/750V 1.5~2.5mm2 (3~12)core;
4,Operating temperature: -25°C~40°C(Max. allowed temperature of conductor is 70°C);
5,Type of conductor: Class 5;
6,Material of conductor: Anaerobic soft copper wires;
7,Material of insulation: High quality lead-free PVC soft insulation;
8,Color of core insulation: Black insulation with white number + yellow/green;
Special rubber outer sheath, cold-resistant
Extensively oil resistant, oil-/ chemical Resistance - see table Technical Informations
Extremely small bending radius
High flexibility
Minimum waste of space
Packeting possibility
Behaviour in fire:
Test according to VDE 0482-332-1-2, DIN EN 60332-1-2/ IEC 60332
Competitive Advantages
Rich experience in elevator business with a professional team of elevator experts
Good quality products with low sales price to help customer save the cost
Cooperation with Chinese famous elevator parts manufacturers with low purchase price
A wide range of products listed in our website.
Easy access to the technical specifications and sales price
Mission and Services
To build up an one-stop elevator parts E-market for overseas buyers.
To help customers to source the cheapest but quality elevator parts.
To help customers to make a lift-parts package and ensure the timely delivery.
To offer free consultance in regard to elevator technology and business.
